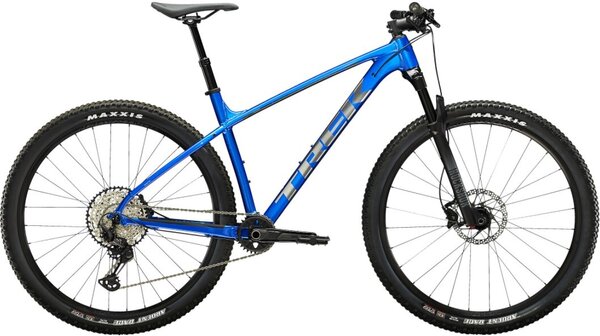

Trek X-Caliber 9

Trek X-Caliber 9
  • Color: Alpine Blue
  • Color: Alpine Blue
  • Color: Alpine Blue
$1,899.99 - $1,929.99
Alpine Blue
Please select options
Order now and pick up in-store for free


X-Caliber 9 is the top-end model in the X-Caliber family. It's a fully race-ready cross country mountain bike built with parts designed to compete. A RockShox Recon fork, a 1x12 Shimano XT/SLX drivetrain, and a wide-range cassette make it a great choice for fast singletrack riders who want a great bike that's ready to race right out of the box.

Why you'll love it:
It's a great bike for someone who's just getting into serious racing: you get high-end XC parts on an awesome frame with enough cash left over for entry fees

There's nothing as sweet as a silent ride: the clutch rear derailleur prevents chain slap, even in the rough

The frame is fully compatible with higher-end parts, like race wheels, if you ever find the need to upgrade

The 1x drivetrain delivers a wide range of gearing with the simplicity of a single shifter

It's right for you if...
You measure your rides in speed and distance, and want a fast XC bike that will help you cover more trail in less time. You race, or you could see yourself getting into racing, so you want a hardtail with competition-level parts that can give you an advantage on the trail.

The tech you get
A lightweight aluminum frame, a RockShox 100mm suspension air fork, a Shimano XT/SLX 1x12 drivetrain with a wide range of gears for easier climbing. Plus, tubeless ready wheels with wider Boost141 hubs for increased wheel strength and better tire clearance, and a dropper post for getting low on descents.


Frame Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, 5mm QR
Fork RockShox Recon Gold RL, 100mm-travel
Headset Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8'' top, 1.5'' bottom
Rims/Wheels Bontrager, double-wall, Tubeless Ready, 23mm width, presta valve
Hubs Bontrager alloy, sealed bearing, alloy axle, 6-bolt
Tires Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35''
Crankset Shimano MT611
Chainrings 30T
Bottom Bracket Shimano SM-BB52, 73mm, threaded external bearing
Chain Shimano SLX M7100, 12 speed
Rear Derailleur Shimano XT M8100, long cage, 51T max cog
Cassette/Rear Cogs Shimano SLX M7100, 10-51, 12 speed
Shifters Shimano SLX M7100, 12 speed
Handlebars Bontrager alloy, 31.8mm, 5mm rise
Tape/Grips Bontrager XR Trail Comp, nylon lock-on
Stem Bontrager Elite, 31.8mm, Blendr compatible, 7 degree
Brakes Shimano hydraulic disc, MT4100 lever, MT410 caliper
Pedals VP-536 nylon platform
Saddle Bontrager Arvada, steel rails, 138mm width
Seat Post Bontrager alloy, 31.6mm, 12mm offset

* Subject to change without notice.

Part Numbers

Option UPC Store SKU
Alpine Blue / Small / 27.5-inch 601842583418 XCA23651775E
Alpine Blue / Small / 29-inch
Alpine Blue / Medium / 27.5-inch
Alpine Blue / Medium / 29-inch 601842583401 XCA22467542E
Alpine Blue / Medium/Large / 27.5-inch
Alpine Blue / Medium/Large / 29-inch 601842583395 XCA23536459E
Alpine Blue / Large / 27.5-inch
Alpine Blue / Large / 29-inch 601842583388 XCA22844528E
Alpine Blue / X-Large / 27.5-inch
Alpine Blue / X-Large / 29-inch 601842583371 XCA23525729E
Alpine Blue / XX-Large / 27.5-inch
Alpine Blue / XX-Large / 29-inch 601842583364 XCA24351008E
