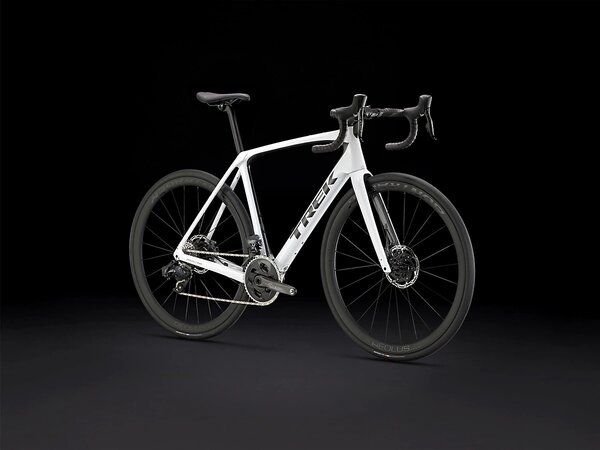

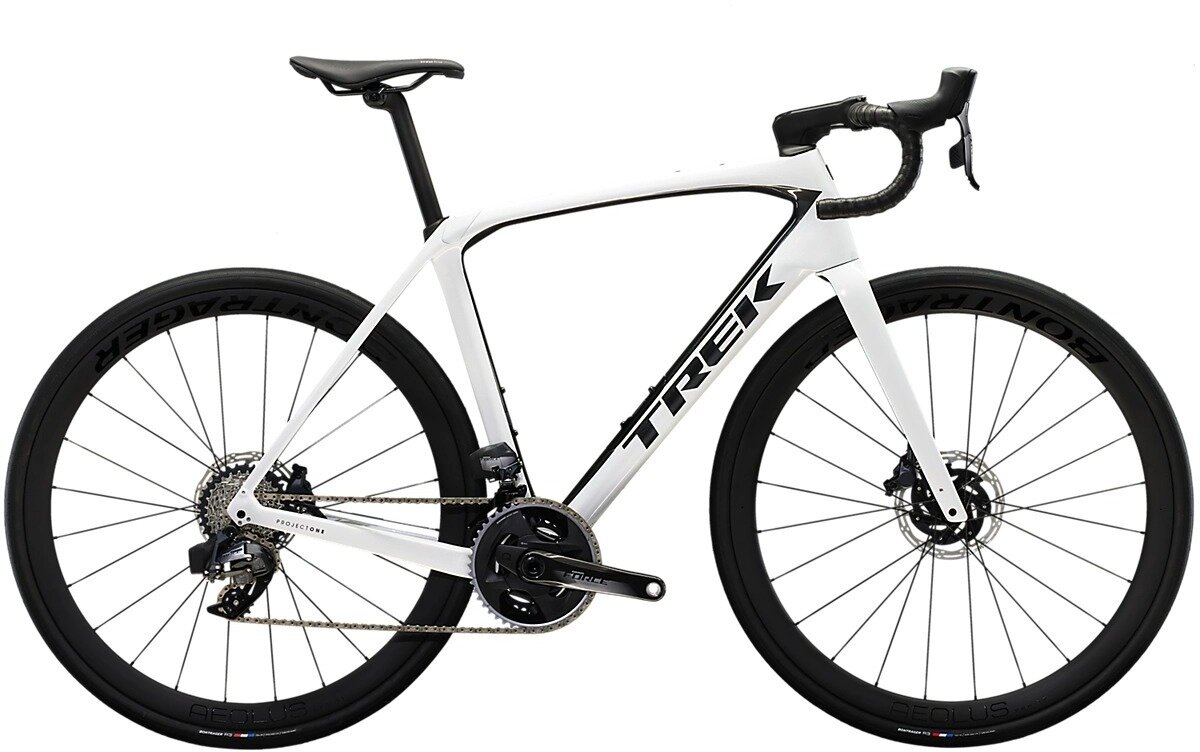

Trek Domane SLR 7 AXS Gen 4

Trek Domane SLR 7 AXS Gen 4
  • Color: Deep Smoke
  • Color: Crystal White
  • Color: Juniper
  • Color: Metallic Red Smoke to Blue Smoke Fade
  • Color: Metallic Red Smoke to Red Carbon Smoke
$7,899.99 - $9,699.99
$9,699.99
Color:
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free

Details

Domane SLR 7 is an ultralight carbon endurance road bike decked out with the high-end parts made for a fast, high-performance ride. You get our highest level OCLV Carbon frame with rear IsoSpeed, a wireless SRAM Force electronic drivetrain for precision shifting, and OCLV Carbon wheels. Plus, it has an easy-access storage compartment for stowing ride essentials, and versatile 38c tire clearance to keep you floating on rough roads and light gravel.

It's right for you if...
You want the perfect balance of comfort for the long haul, comfort when the road turns to gravel, and race-worthy spec. You want the most advanced endurance road bike frame we offer, with the added benefit of a wireless electronic SRAM Force eTap drivetrain for fast, reliable shifting in any condition.

The tech you get
An ultralight and refined 800 Series OCLV Carbon frame and fork with rear IsoSpeed, integrated internal storage, and top tube mounts. It's equipped with a wireless SRAM 2x12 Force eTap AXS electronic drivetrain, power meter cranks for monitoring performance metrics, powerful flat-mount disc brakes, Aeolus Pro 37 carbon wheels, and a Bontrager Pro IsoCore handlebar that reduces vibrations from the road by 20% over a standard carbon bar.

The final word
Our highest-end Domane carbon frame, with the precision shifting that comes only from wireless SRAM Force eTap. You're getting tech that provides a real advantage in comfort, reliability, and speed during all-day adventures, competitive group rides, or long races.

Why you'll love it
- The sleek all-new 800 Series OCLV Carbon frame saves weight and gives you more free speed thanks to updated Kammtail tube shapes
- Wireless SRAM Force eTap AXS drivetrain offers quick, precision shifts that you can count on in the most demanding conditions
- Road-smoothing rear IsoSpeed absorbs fatiguing bumps in the road to keep you comfortable through the longest miles and hardest race days
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures

Sizes:
SizeRider
Height
Inseam
47 152 - 158 cm
5'0" - 5'2"
71 - 75 cm
28" - 30"
50 158 - 163 cm
5'2" - 5'4"
74 - 77 cm
29" - 30"
52 163 - 168 cm
5'4" - 5'6"
76 - 79 cm
30" - 31"
54 168 - 174 cm
5'6" - 5'9"
78 - 82 cm
31" - 32"
56 174 - 180 cm
5'9" - 5'11"
81 - 85 cm
32" - 33"
58

180 - 185 cm
5'11" - 6'1"

84 - 87 cm
33" - 34"
60 185 - 190 cm
6'1" - 6'3"
86 - 90 cm
34" - 35"
62 190 - 195 cm
6'3" - 6'5"
89 - 92 cm
35" - 36"

Geometry

Geometry Chart:
Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size 700c 700c 700c 700c 700c 700c 700c 700c
A- Seat tube 42 45 47.5 50 52.5 54.8 56.7 58.6
B- Seat tube angle 74.6° 74.6° 74.2° 73.7° 73.3° 73.0° 72.8° 72.5°
C- Head tube length 11 13 14.5 16 17.5 19.5 22 24.5
D- Head angle 71.0° 71.1° 71.3° 71.3° 71.9° 72.0° 72.1° 72.1°
E- Effective top tube 50.9 51.9 53 54.2 55.4 56.7 57.9 59.3
G- Bottom bracket drop 8 8 8 8 7.8 7.8 7.5 7.5
H- Chainstay length 42 42 42 42 42 42.5 42.5 42.5
I- Offset 5.3 5.3 5.3 5.3 4.8 4.8 4.8 4.8
J- Trail 6.1 6 5.9 5.9 6.1 6 5.9 5.9
K- Wheelbase 98.6 99.6 100.3 101 100.8 102.2 103.2 104.2
L- Standover 68.6 71.6 73.5 75.4 77.6 79.6 81.7 83.5
M- Frame reach 36.4 36.8 37.1 37.4 37.7 38 38.3 38.6
N- Frame stack 52.7 54.6 56.1 57.5 59.1 61.1 63.2 65.6
Stem length 70 80 90 90 100 100 110 110
Saddle rail height min
(w/short mast)
55.5 58.5 61.5 64 67 69 71 73
Saddle rail height max
(w/short mast)
62 65 68 70.5 73.5 75.5 77.5 79.5
Saddle rail height min
(w/tall mast)
58.5 61.5 64.5 67 70 72 74 76
Saddle rail height max
(w/tall mast)
65 68 71 73.5 76.5 78.5 80.5 82.5

Specs

Frame 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Wheels Front: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Rear: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, Shimano 11/12-speed freehub, 142x12mm thru axle
Rims Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Tires Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
Bottom Bracket SRAM DUB, T47 threaded, internal bearing
Crankset Size: 47 SRAM Force AXS Power Meter, 46/33, DUB, 165mm length
Size: 50, 52 SRAM Force AXS Power Meter, 46/33, DUB, 170mm length
Size: 54, 56 SRAM Force AXS Power Meter, 46/33, DUB, 172.5mm length
Size: 58, 60, 62 SRAM Force AXS Power Meter, 46/33, DUB, 175mm length
Shifters SRAM Force eTap AXS, 12 speed
Front Derailleur SRAM Force eTap AXS, braze-on
Rear Derailleur SRAM Force eTap AXS, 36T max cog
Cassette/Freewheel SRAM Force XG-1270, 10-33, 12 speed
Chain SRAM Force, 12 speed
Rotors SRAM CenterLine X, centerlock, round edge, 160mm
Handlebars Size: 47 Bontrager Pro IsoCore VR-SF, 38cm
Size: 50, 52 Bontrager Pro IsoCore VR-SF, 40cm
Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm
Size: 58, 60, 62 Bontrager Pro IsoCore VR-SF, 44cm
Stem Size: 47 Bontrager RCS Pro, 7 degree, 70mm length
Size: 50 Bontrager RCS Pro, 7 degree, 80mm length
Size: 52, 54 Bontrager RCS Pro, 7 degree, 90mm length
Size: 56, 58 Bontrager RCS Pro, 7 degree, 100mm length
Size: 60, 62 Bontrager RCS Pro, 7 degree, 110mm length
Headset Bontrager Supertack Perf tape
Seatpost Size: 47, 50, 52, 54, 56 Domane carbon seatpost, KVF2 shaping, 20mm offset, 280mm length
Size: 58, 60, 62 Domane carbon seatpost, KVF2 shaping, 20mm offset, 320mm length
Saddle Size: 47, 50, 52 Bontrager P3 Elite, short nose, 155mm width
Size: 54, 56, 58, 60, 62 Bontrager P3 Elite, short nose, 145mm width
Pedals Sold separately
Accessories & Extras SRAM eTap battery pack (with charger), Bontrager BITS Internal Frame Storage Bag

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Crystal White / 47cm 768682480908 5281151 DOM32817794
Crystal White / 50cm 768682480946 5281152 DOM328186914
Crystal White / 52cm 768682481189 5281153 DOM329265974
Crystal White / 54cm 768682481165 5281154 DOM328973224
Crystal White / 56cm 768682481066 5281155 DOM322865084
Crystal White / 58cm 768682481363 5281157 DOM325184774
Crystal White / 60cm 768682481288 5281159 DOM322068144
Crystal White / 62cm 768682480885 5281161 DOM324018094
Deep Smoke / 47cm 768682245835 5281135 DOM298138524
Deep Smoke / 50cm 768682246078 5281136 DOM295125464
Deep Smoke / 52cm 768682245736 5281137 DOM291068554
Deep Smoke / 54cm 768682245859 5281138 DOM25502434E
Deep Smoke / 56cm 768682246030 5281139 DOM291479634
Deep Smoke / 58cm 768682246092 5281140 DOM295346994
Deep Smoke / 60cm 768682245934 5281141 DOM292655064
Deep Smoke / 62cm 768682245996 5281142 DOM29367454
Juniper / 47cm 768682480984 5281179 DOM274368414
Juniper / 50cm 768682481240 5281181 DOM271356664
Juniper / 52cm 768682481202 5281183 DOM274288124
Juniper / 54cm 768682481004 5281185 DOM277839824
Juniper / 56cm 768682504444 5281187 DOM2737494
Juniper / 58cm 768682504048 5281189 DOM278815834
Juniper / 60cm 768682504222 5281191 DOM276507944
Juniper / 62cm 768682504161 5281193 DOM278560364
Metallic Red Smoke to Blue Smoke Fade / 47cm 768682245613 5281143 DOM512853144
Metallic Red Smoke to Blue Smoke Fade / 50cm 768682246139 5281144 DOM517422584
Metallic Red Smoke to Blue Smoke Fade / 52cm 768682245750 5281145 DOM51803474
Metallic Red Smoke to Blue Smoke Fade / 54cm 768682481080 5281146 DOM515044834
Metallic Red Smoke to Blue Smoke Fade / 56cm 768682480922 5281147 DOM518785924
Metallic Red Smoke to Blue Smoke Fade / 58cm 768682480960 5281148 DOM518629174
Metallic Red Smoke to Blue Smoke Fade / 60cm 768682481301 5281149 DOM517267944
Metallic Red Smoke to Blue Smoke Fade / 62cm 768682481127 5281150 DOM514960874
Metallic Red Smoke to Red Carbon Smoke / 47cm 768682481042 5281163 DOM522141574
Metallic Red Smoke to Red Carbon Smoke / 50cm 768682481226 5281165 DOM529114884
Metallic Red Smoke to Red Carbon Smoke / 52cm 768682481141 5281167 DOM529379554
Metallic Red Smoke to Red Carbon Smoke / 54cm 768682481349 5281169 DOM521125034
Metallic Red Smoke to Red Carbon Smoke / 56cm 768682481028 5281171 DOM524152154
Metallic Red Smoke to Red Carbon Smoke / 58cm 768682481325 5281173 DOM528592504
Metallic Red Smoke to Red Carbon Smoke / 60cm 768682481264 5281175 DOM521643884
Metallic Red Smoke to Red Carbon Smoke / 62cm 768682481103 5281177 DOM529546794
Trek Black / 47cm 601842923290 5316107 DOM299318004
Trek Black / 50cm 601842923283 5316108 DOM294662014
Trek Black / 52cm 601842923276 5316109 DOM29603454
Trek Black / 54cm 601842923269 5316110 DOM296261364
Trek Black / 56cm 601842923252 5316111 DOM298349884
Trek Black / 58cm 601842923245 5316112 DOM292616044
Trek Black / 60cm 601842923238 5316113 DOM294123964
Trek Black / 62cm 601842923221 5316114 DOM298305944
